What is bearing stress in bolt?
What is bearing stress in bolt?

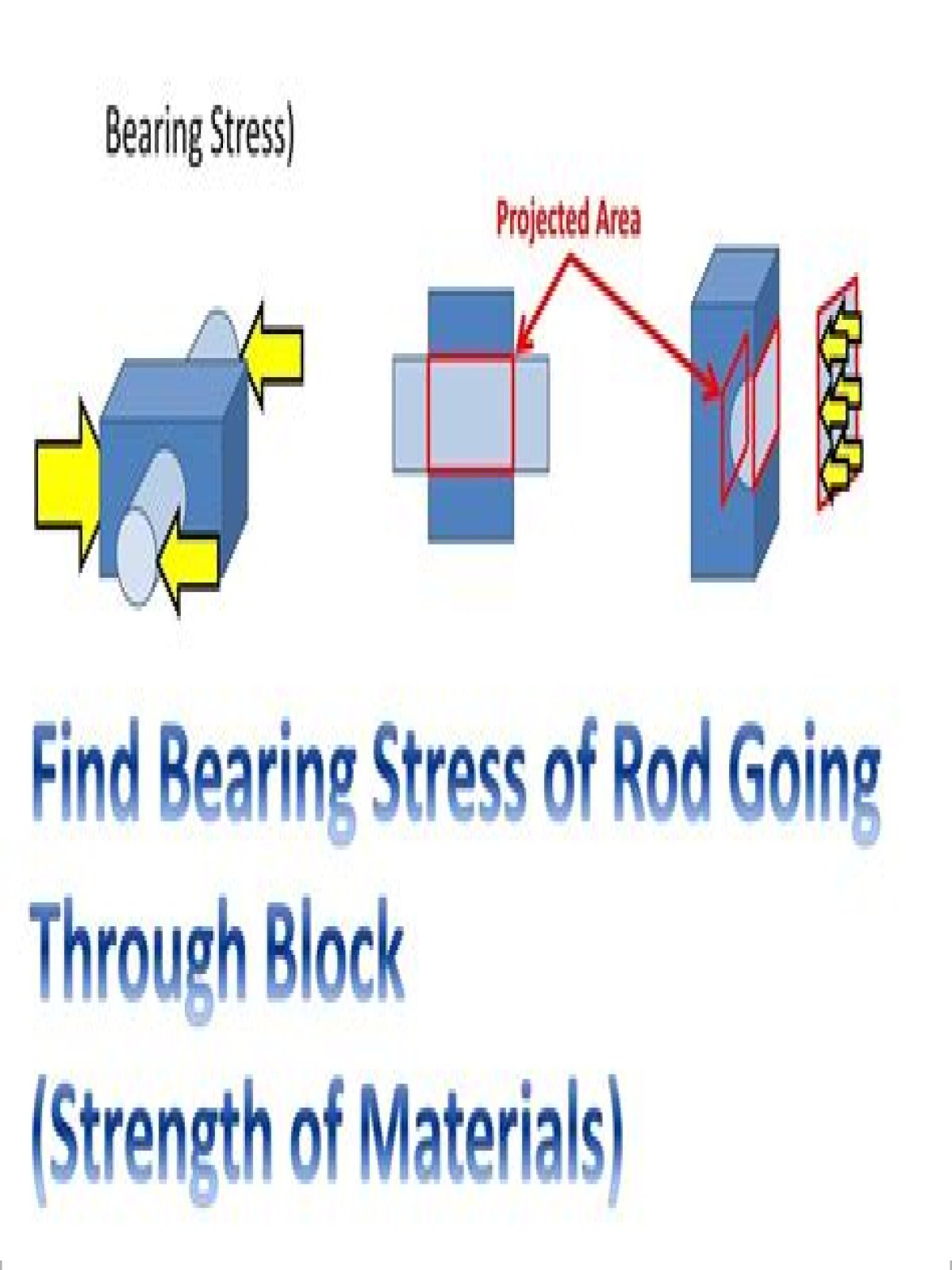

To calculate bearing stress, divide the force over the contact area between the fastener and hole. Theoretically, it is often the simple area of the bearing surface. A more conservative approach is to take the area from the edge of the bolt hole to the edge of the material.
How do you calculate bolt stress?
For this reason, the tensile stress area is calculated through an empirical formula involving the nominal diameter of the fastener and the thread pitch. P = 120,000 psi x 0.3340 sq. in P = 40,080 lbs. As the fastener approaches the maximum strength of the threaded portion, it will permanently deform.
What is allowable bearing stress?
The allowable bearing capacity (qa) is the maximum bearing stress that can be applied to the foundation such that it is safe against instability due to shear failure and the maximum tolerable settlement is not exceeded. The net bearing pressure (qn) is the increase in stress on the soil.
Is normal stress and bearing stress the same thing?
A normal stress will occur when a member is placed in tension or compression. Examples of members experiencing pure normal forces would include columns, collar ties, etc. Bearing stress is the contact pressure between the separate bodies.
What is meant by working stress?
Definition of working stress : the stress to which material may be safely subjected in the course of ordinary use.
What are the daily life examples of bearing stress?
Painting, Brushing, Applying creams/soaps/lotion/ointment etc. While Chewing food between the teeth’s. While walking or running while our feet push ground back to move forward. When a moving vehicle starts or stops, The surface of the seat experience the shear stress.
How is bolt torque required?
DETERMINING TORQUE The general equation for bolt load based on applied torque is T = KFiDb where K = torque coefficient. K is a function of the coefficients of friction and collar friction in the joint, and these are based on variables such as surface finish, coatings, and so on.
Does bolt length affect torque?
Tightening torque is not influenced by the bolt length so easy to standardize. The Bolt efficiency will be low due to wide tolerance of the tension.
What is the basic difference between normal stress shear stress and bearing stress?
Well, technically, a bearing stress is the stress between two surfaces in compression. While normal stress is either tension or compression and acts normal to a particular axis. Example for bearing stress is a pin in hole under load and for normal stress is a beam in bending.
What is the symbol of stress?
σ Stress is frequently represented by a lowercase Greek letter sigma (σ)….Stress (mechanics)
| Stress | |
|---|---|
| Common symbols | σ |
| SI unit | Pascal |
| Other units | lbf per square inch ( lbf/in2 ) psi, bar |
| In SI base units | Pa = kg⋅m−1⋅s−2 |
What is stress strength material?
Stress is defined as the resistance force acting per unit cross-section area of the body. It is also defined as the ratio of applied load to the cross section area of the body. Within this elastic limit the resistance force equals to the applied load.
What are the bearing properties of a bolt?
Bearing properties are forces acting on the hole a bolt goes through. A bearing test is to determine if there might be any deformation of the hole. Preloading will reduce bearing forces, but not all bolted joints are preloaded. To calculate bearing stress, divide the force over the contact area between the fastener and hole.
What is the intensity of bearing stress between Rivet and hole?
The intensity of the bearing stress between the rivet and the hole is not constant but varies from zero at the edges to a maximum value directly in back of the rivet.
How do you calculate shear stress on a bolted joint?
For bolted joints without a preload shear, stress is calculated like bearing stress: force over area. Like bearing stress, it is also an average stress and the maximum shear will be higher. If a bolted joint has no separation or clearance, a direct shear situation—shear without bending—can occur.
What is bearing stress?
Bearing stress can also be said as Crushing Stress. Mathematically Bearing stress can be defined as the compressive load divided Characteristic area perpendicular to it.
