What is the definition of a long column?
What is the definition of a long column?
Definition of long column : a column so slender that it will fail under longitudinal load by bending rather than by crushing and typically having a length of 20 to 30 times the diameter.
What are the characteristics of short column failure?
Characteristics of Short Column:
| Sr. No. | Property / parameter | Short Column |
|---|---|---|
| 1 | Ratio of lateral dimension with height | It is larger in case of short columns |
| 2 | Failure | It fails by crushing |
| 3 | Ratio of effective length with least lateral dimension | Less than 12 |
| 4 | Slenderness ratio | Less than 45 |
What is the criterion for the column to consider as short and long column?
A column is said to be short if the ratio of effective length to its least lateral dimension is less than or equal to 12. A column is said to be long if the ratio of effective length of column to its least lateral dimension is greater than 12.
What is a column write the difference between strut and column?
1) both column and Strut is comprehensive member but main difference between two is column is comprehensive member of frame structure and strut is comprehensive member of truss structure.
What is the effective length of a column?
Structurally effective length of column is defined as height between the points of contraflexure of the buckled column i.e. between two floors basically.
How the failure of short column and long column take places?
9.1 Short and Long Columns – Modes of Failure Very short, stout columns fail by crushing due to material failure. – Failure occurs once the stress exceeds the elastic (yield point) limit of the material. Long, slender columns fail by buckling – a function of the column’s dimensions and its modulus of elasticity.
What’s the difference between columns and pillars?
A pillar is a vertical support member and may be constructed as a single piece of timber, concrete or steel, or built up out of bricks, blocks and so on. However, whereas a pillar does not necessarily have a load-bearing function, a column is a vertical structural member that is intended to transfer a compressive load.
What is equivalent length of column?
The equivalent or effective length is defined as the distance between two adjacent points of contra flexure on the column. The point of contra flexure is defined as the point on the column where the there is a change in the direction of the axis of the column.
What is the size of column?
Standard size of an RCC column should not be less than 9”x 9” (225mm x 225mm) with 4 bars of 12mm Fe500 Steel with m20 grade of concrete and stirrups of [email protected]″C/C. I will recommended 9″ × 12″ (230mm × 300mm) standard size of RCC column for ground floor residential building.
How do you find the length of a column?
Steps
- Open the file in excel (parse it if it’s text)
- Insert a new row above the header row.
- Enter the following formula in every column of the new row that is being imported. =MAX(LEN(A2:A65636)) The range inside the forumla should cover all of the rows in the column (eg. A2:A100) for records 2 – 100.
What is slender column?
A column is said to be slender if its cross-sectional dimensions are small compared to its length. If the slenderness ratio of a column is high, it will collapse under a smaller compression load in contrast to a short column with the same cross-sectional dimensions.

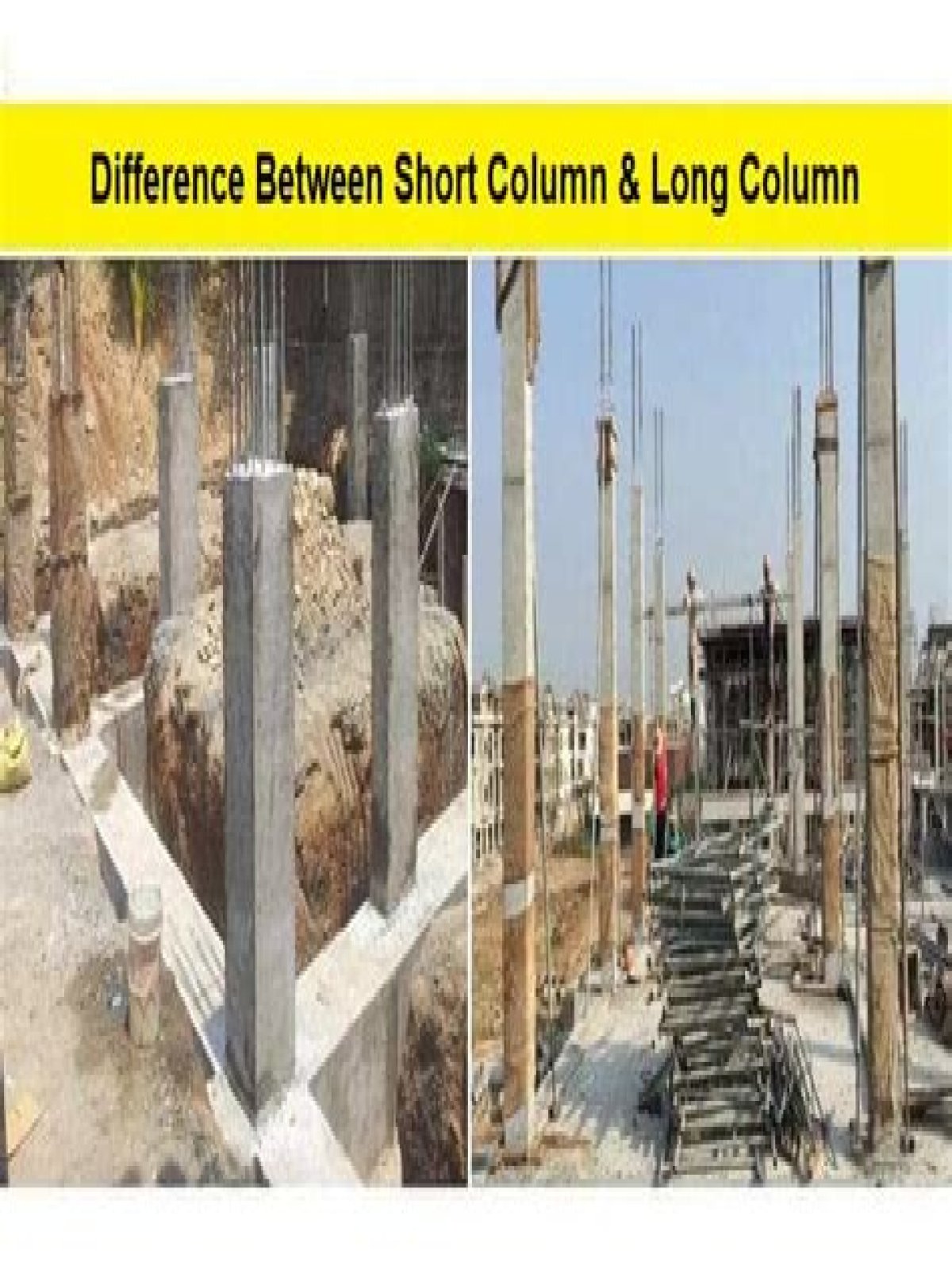

What is the difference between long column and short column?
Difference between Long Columns and Short Columns LONG COLUMN SHORT COLUMN The column, whose lateral dimension is very small when compared to its length (or height), is called as long column. The column, whose lateral dimension is very large when compared to its length (or height), is called as short column. It is generally fails by buckling.
What is the ratio of effective length of a short column?
A column is said to be short if the ratio of effective length to its least lateral dimension is less than or equal to 12. A column is said to be long if the ratio of effective length of column to its least lateral dimension is greater than 12. The ratio of effective length of short column to its least radius of gyration is less than or equal to 40.
What is slenderness ratio of long column and short column?
If slenderness ratio is less than 12, it is called as short column, if SR is greater than 12, it is long column. Slenderness Ratio of Long Column A long or slender column is the one whose ratio of effective length to its least lateral dimension is not less than 12. Then it is termed as a long column.
What is a long column in civil engineering?
A long or slender column is the one whose ratio of effective length to its least lateral dimension is not less than 12. Then it is termed as a long column. Long Column. When this ratio of effective length to the least radius of gyration is greater than 45, then it is called a long column.
