What do jewels in a watch movement mean?
What do jewels in a watch movement mean?

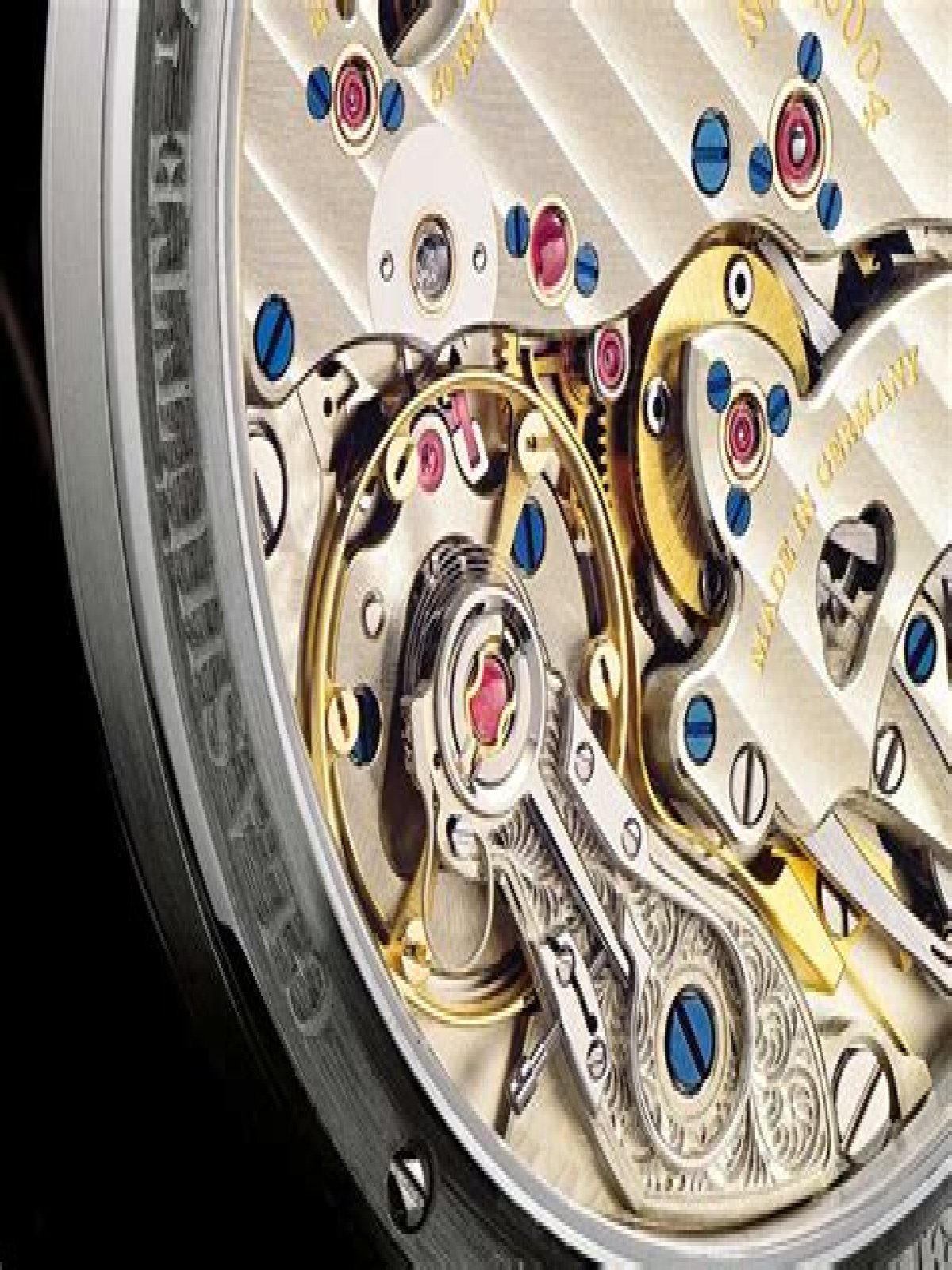

Jewels or gemstones were introduced in watch movements to reduce friction at points of heaviest wear and tear. When metal rubs against metal, and when oil meant for lubrication breaks down, the damage to pivots and bearings can be severe.
What does 21 jewel movement mean?
What does 21 jewels mean in a watch? Similar to a 17-jewel watch that has a fully jeweled movement, but also has a few extra capstones added which are used to reduce positional errors. These extra stones are often found in higher-quality watches.
How many jewels are in ETA 2824 movement?
twenty-five jewel One workhorse of the ETA mechanical line is the ETA 2824-2, The 2824 is an automatic winding, twenty-five jewel movement, available in four executions or grades: Standard, Elaborated (improved), Top and Chronometer.
How long will a Sellita SW200 last?
The Sellita SW200’s standard specs are similar to that of the ETA 2824: Features: Hours, minutes, hacking sweep seconds, date window. Beats per hour: 28,800 (4 Hz) Power reserve: 38 hours.
How many jewels are in a Rolex?
To give you an idea of what we mean, a modern chronograph like the Rolex Daytona has 44 jewels; however there are behemoths like the IWC Il Destriero Scafusia which has a flying minutes tourbillon and boasts 76 jewels.
What is 25 jewels Swiss made watch?
Automatic watches are fully jeweled with 17 jewel bearings. Olyn has 25 for smooth self-winding. Virtually every mechanical watch contains a stash of jewels secreted within the case. These gemstones serve as bearings for the metal pivots of the movement’s gears, wheels, and pinions.
What is the difference between 17 jewels and 21 jewels?
A 17 jewel watch has every bearing from the balance wheel to the center wheel pivot bearings jeweled, so it was considered a ‘fully jeweled’ watch. In quality watches, to minimize positional error, capstones were added to the lever and escape wheel bearings, making 21 jewels.
Which ETA movement is best?
The 2824 is one of best-known ETA movements. Dubbed “the workhorse.” it’s highly prized for its reliability, accuracy, and durability. The 2824 is a self-winding movement with a 38-hour power reserve. You can find it in watches produced by brands like Tudor and Breitling.
Are ETA movements made in China?
Most watches companies do not make their own movements. ETA is part of the Swatch Group which makes a number of brands as seen in the link. …
Is ETA better than Sellita?
The biggest difference is ETA has a proprietary tooth profile which they use in their calibers. Sellita uses a different but technically similar profile. For example, the SW200-1 has 26 jewels while the ETA 2824-2 has just 25 jewels. The extra jewel is for the barrel arbor under the ratchet wheel.
How accurate is the Sellita SW200?
Standard – adjusted in two positions; accuracy of +/-12 sec/day up to +/- 30 sec/day.
What is a Swiss watch movement?
A watch movement is the engine that makes it run. Seems a simple statement but there are different types and grades of Swiss watch movements that go into a good watch. There are 3 types of watch movements that go into a good watch. Each has its own characteristics and functions and make each watch unique.
How many jewels does my gl224 powered watch have?
If your GL224 powered watch has the ETA 2824-2, it will say 25 jewels. If your watch has the Sellita caliber SW200-1, the jewel count will be 26. Why are they the same caliber number?
Why are watch movements made of rubies?
Just like cartilage in bones, jewels keep wear down and the watch movement functioning well. Rubies are used because they are hard and long lasting in a Swiss watch movement.
How does a quartz watch movement work?
An electrical pulse s sent to a quartz crystal which vibrates at 32,768 per second. the rotor moves one second forward each time this is achieved. It makes quartz watches highly accurate. Jewels in a watch movement are mainly rubies.
